Aircraft Refueller & Trailer

The Katmerciler Aircraft Refueling Vehicle is designed to meet the demands of modern aviation operations. Equipped with both overwing and underwing reels, as well as deck-mounted hoses, it enables safe and efficient refueling of all types of aircraft.

Offering high efficiency, maximum safety, and ease of operation, the Katmerciler Aircraft Refueling Vehicle is the ideal solution for optimizing airport operations. Its ergonomic design and robust construction ensure reliable performance under all field conditions.

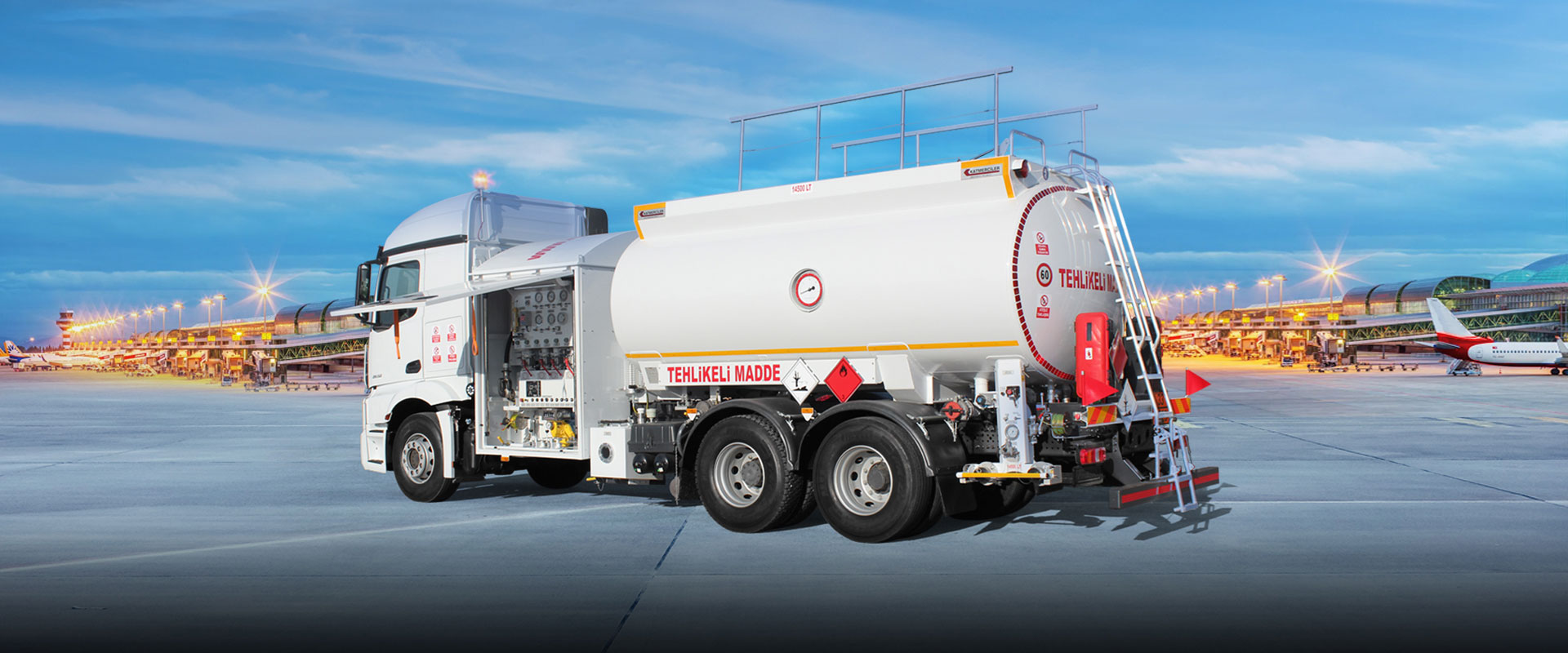

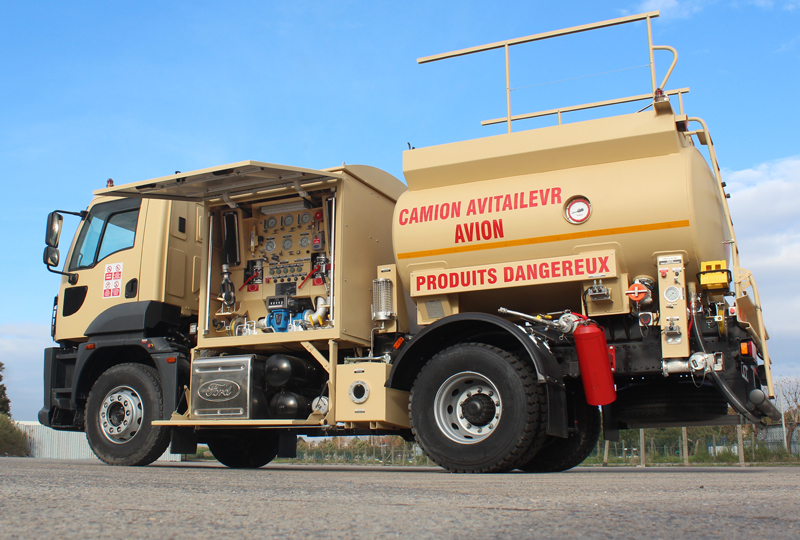

AIRCRAFT REFUELLER
Fuelling Capabilities
Under Wing Reel Hose	1 Unit (max. 1,200 L/min)
Over Wing Reel Hose	1 Unit (max. 300 L/min)
Defuelling System	max. 300 L/min
Optional	2 Units Deck Hose (max. 2,500 L/min)
Flow Rate
Transfer with 1 Under Wing Nozzle	max. 1,200 L/min
Transfer with 1 Over Wing Nozzle	max. 300 L/min
Defuelling System	max. 300 L/min
Deck Transfer	With 2 Under Wing Nozzles, max. 2,500 L/min
Tank and Equipment
Material	Aluminum
Shape	Elliptical
Capacity	5,000 – 25,000 L
Compartment	Single
Lifting Platform (Optional)
Platform Height	4,200 mm
Location	Behind vehicle cabin and in front of refuelling cabinet

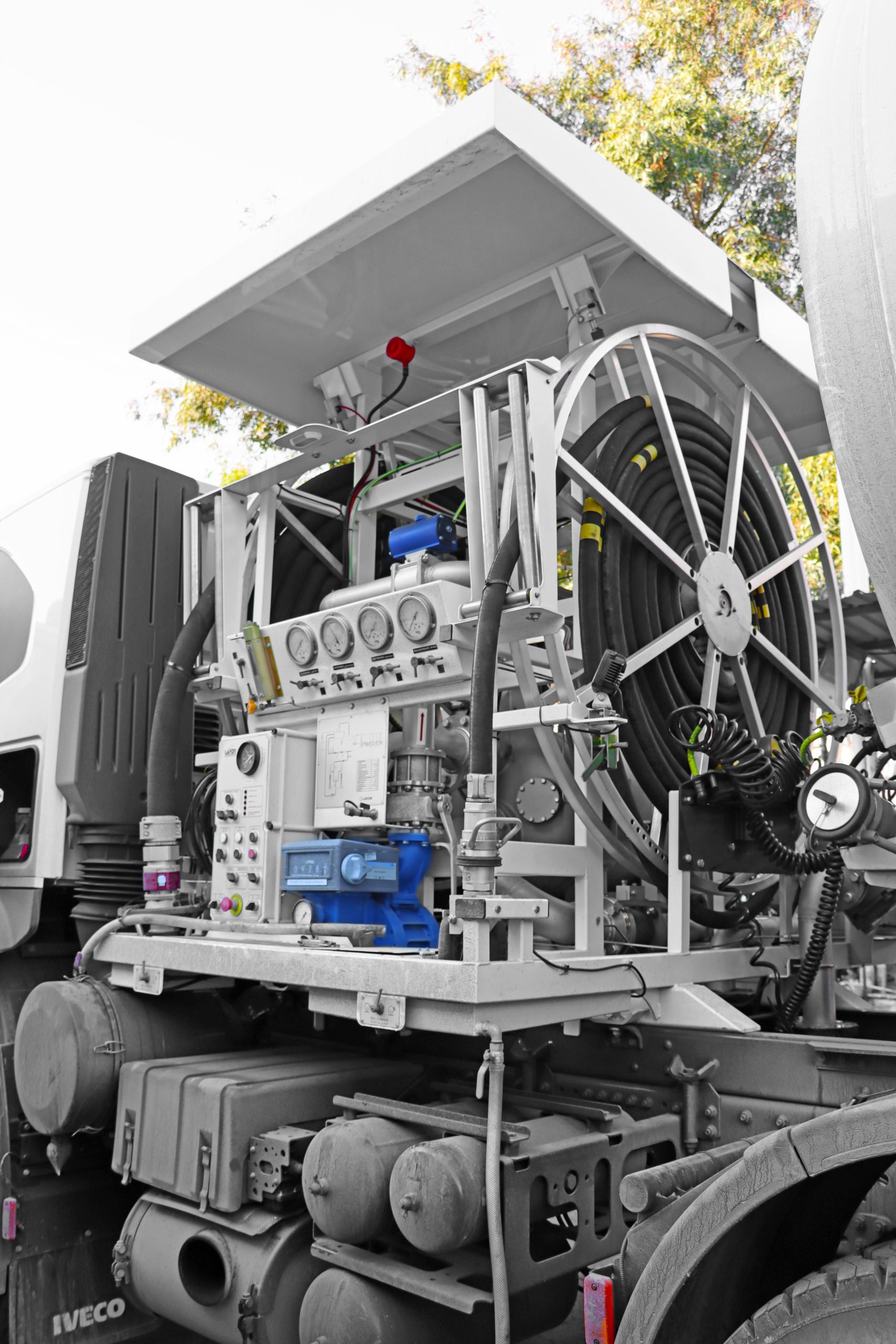

Fuel System
Filter	Filter Water Separator (FWS), compliant with EI 1581 & EI 1596
Under Wing Hose	2" × 20 m
Over Wing Hose	1½" × 20 m
Pressure Control Valve	In-line type
Venturi	For under wing fuelling system
Optional Deck Hose	2½" × 2 m
Goods Transported
Fuel Types	JET A1, Ethyl Alcohol Variants
Dimensions
Overall Length	Varies according to tank capacity and vehicle configuration
Overall Height	Varies according to tank capacity and vehicle configuration
Overall Width	2550 mm
Subframe
Design	Steel Subframe Design
Dump Tank
Specification	Aluminum, 150 L Capacity
Optional	Automatic Emptying and Emergency Shut-off
Measuring System
Features	Electronic Meter, MID Compliant
Electrical System
Design	ADR Compliant (FL / AT)
Interlock System	PLC Controlled, EN IEC 60079 Certified
Dead-Man System	Electric
Certification
Tank Code	LGBF
Standards	ADR, EN 12312-5, JIG 1 Issue 13

```

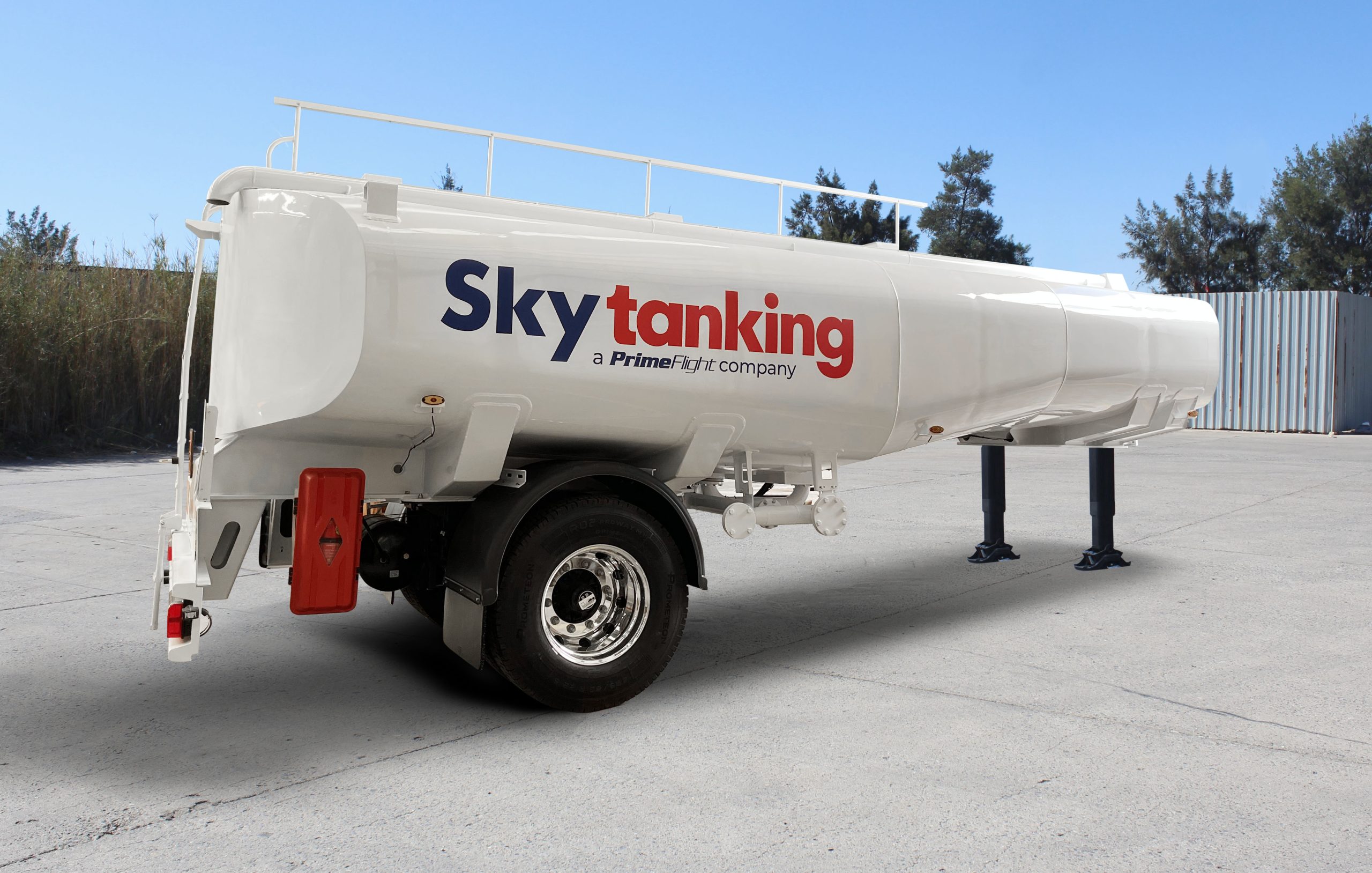

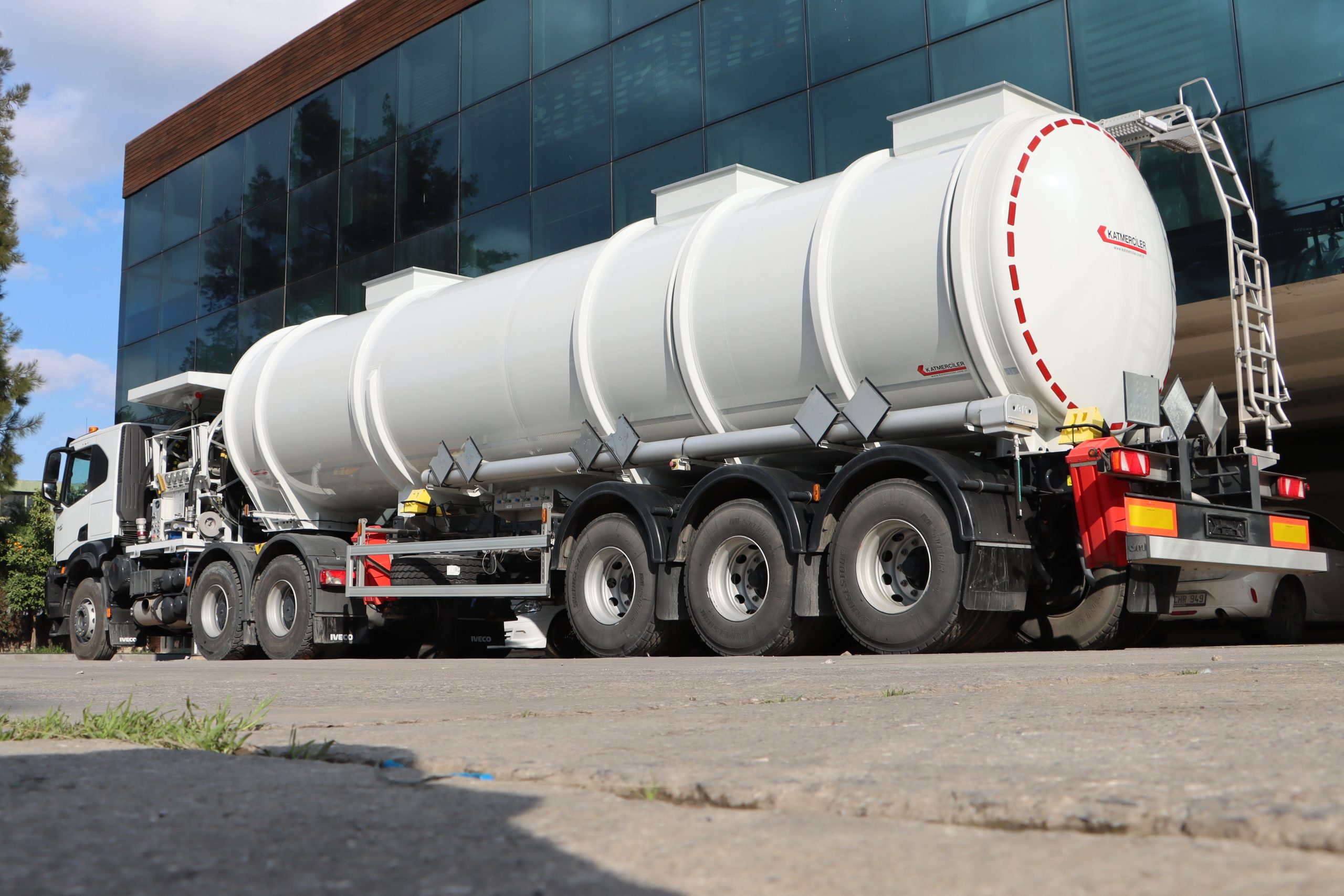

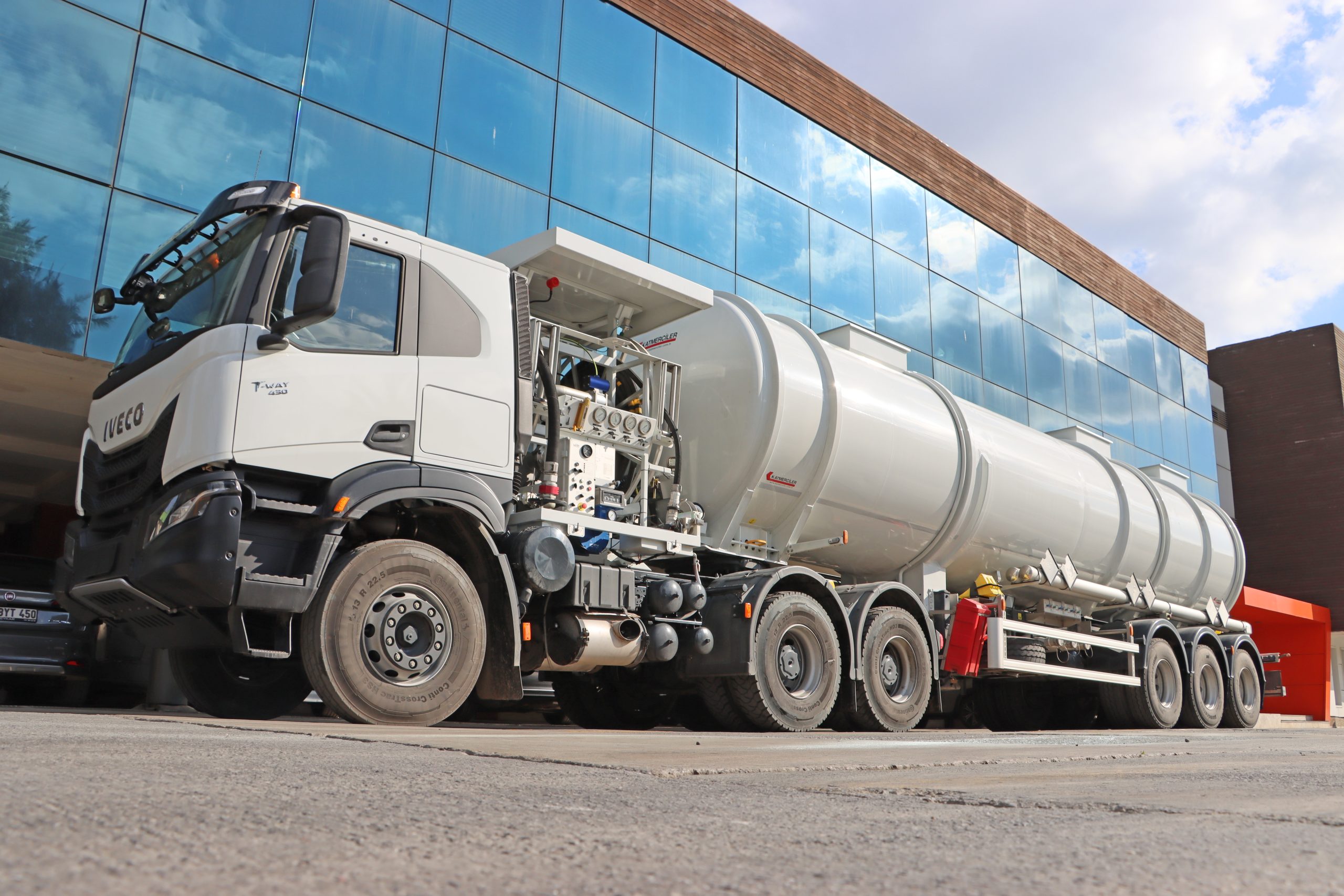

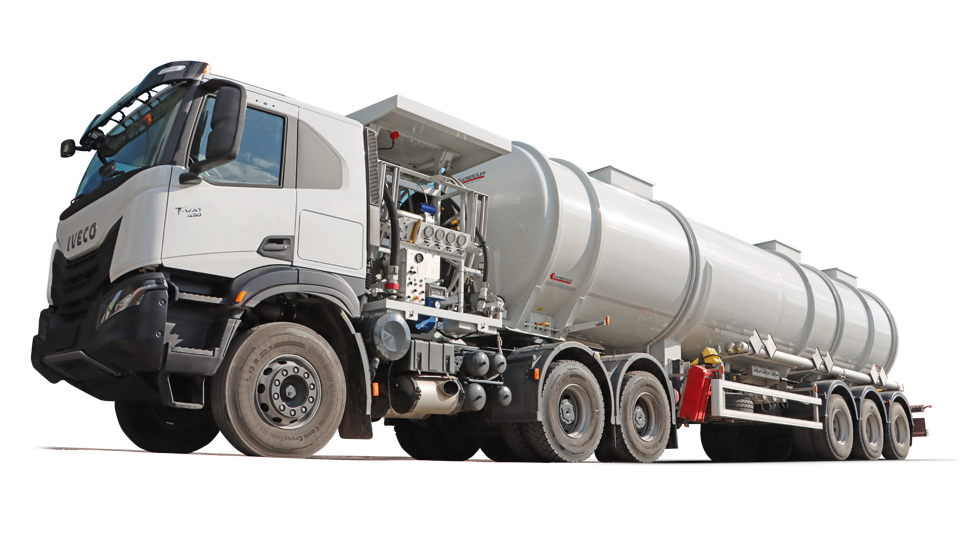

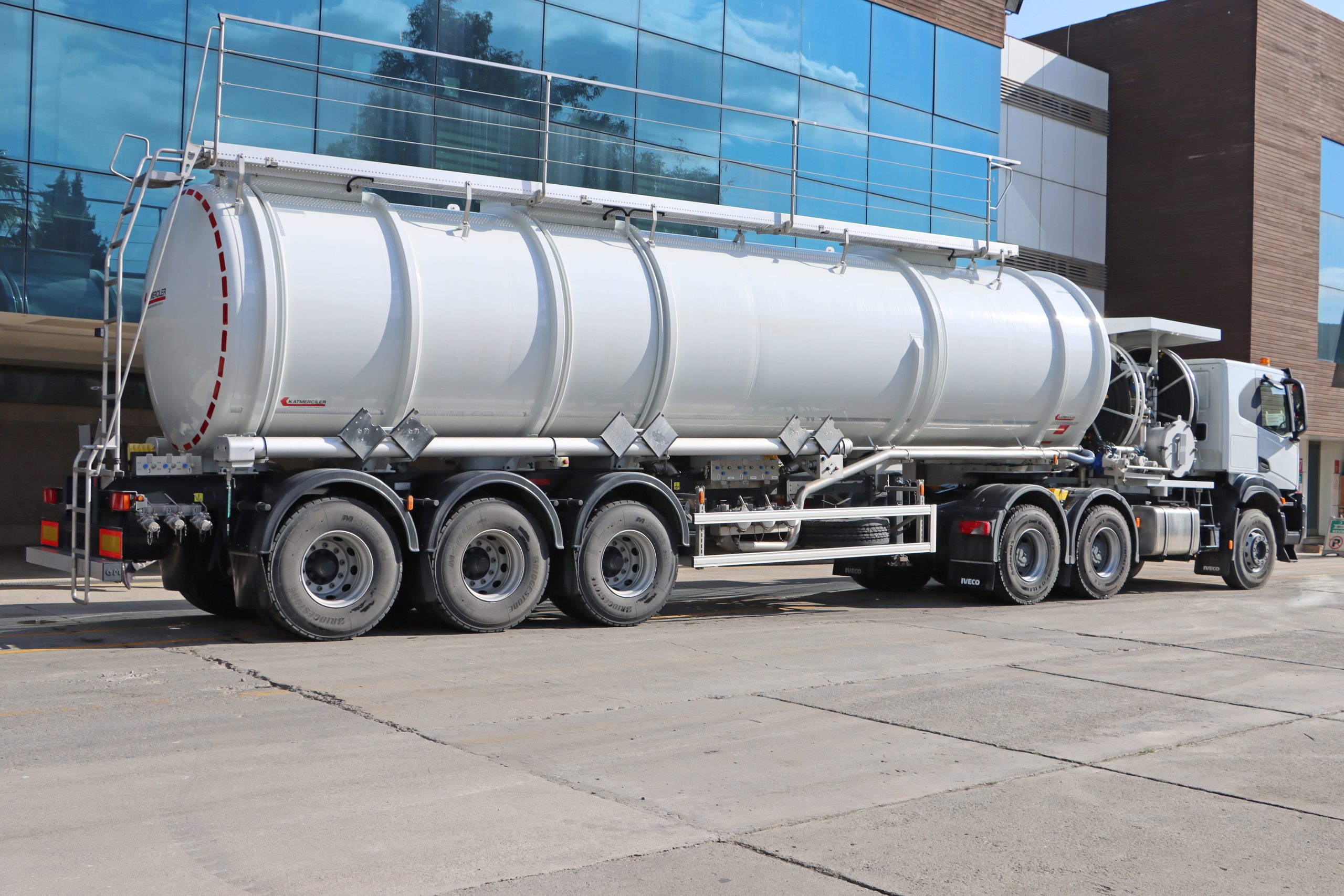

AIRCRAFT REFUELLER TRAILER
Designed in accordance with aviation standards, our fuel tanker provides fast, clean and reliable refuelling to aircraft with maximum safety and precision.
Fuelling Capabilities
Under Wing Reel Hose	1 Unit (max. 1,200 L/min)
Over Wing Reel Hose	1 Unit (max. 300 L/min)
Defuelling System	max. 300 L/min
Optional	2 Units Deck Hose (max. 2,500 L/min)
Flow Rate
Hose Reel Transfer with 1 Under Wing Nozzle	max. 1,200 L/min
Hose Reel Transfer with 1 Over Wing Nozzle	max. 300 L/min
Deck Transfer with 2 Under Wing Nozzles	max. 2,500 L/min (Optional)
Defuelling System	max. 300 L/min
Tank and Tank Equipment
Material	Aluminum
Shape	Elliptical
Capacity	25,000 L – 65,000 L
Compartment	Single
Lifting Platform (Optional)
Platform Height	4,200 mm
Location	Behind the vehicle cabin and in front of the refuelling cabinet
Fuel System
Filter	Filter Water Separator (FWS), compliant with EI 1581 and EI 1596
Under Wing Hose	2”, Length 20 m
Over Wing Hose	1½”, Length 20 m
Pressure Control Valve	In-line pressure control valve
Venturi	For under wing filling system
Optional Deck Hose	2½”, Length 2 m
Goods Transported
Fuel Types	JET A1, Ethyl Alcohol Variants
Dimensions
Overall Length	Varies according to tank capacity and vehicle configuration
Overall Height	Varies according to tank capacity and vehicle configuration
Overall Width	2550 mm / 3000 mm
Subframe
Design	Steel Subframe Design
Dump Tank
Specification	Aluminum, 150 L Capacity
Optional	Automatic Emptying and Emergency Shut-off
Measuring System
Features	Electronic Meter, MID / OIML Compliant
Electrical System
Design	ADR Compliant (FL / AT)
Interlock System	PLC Controlled, EN IEC 60079 Compliant
Dead-Man System	Electric
Sampling System
Sampling	4 L Closed Circuit Sampler
Sample Point	Millipore Sample Point
Equipment
• Timer controlled dead-man system, buzzer and warning light • Emergency stop on both sides and platform • 2 x 12 kg ABC dry powder fire extinguishers • 25 km/h speed limit according to airport regulations • Suitable for highway use (Optional)
Optional Equipment
Additional large counter display in the connection cabinet (for electronic meter)
Operating Temperature
-20°C / +50°C
Certification
EN 12312-5 / JIG 1 Issue 13
